Toto® CST743SB#01

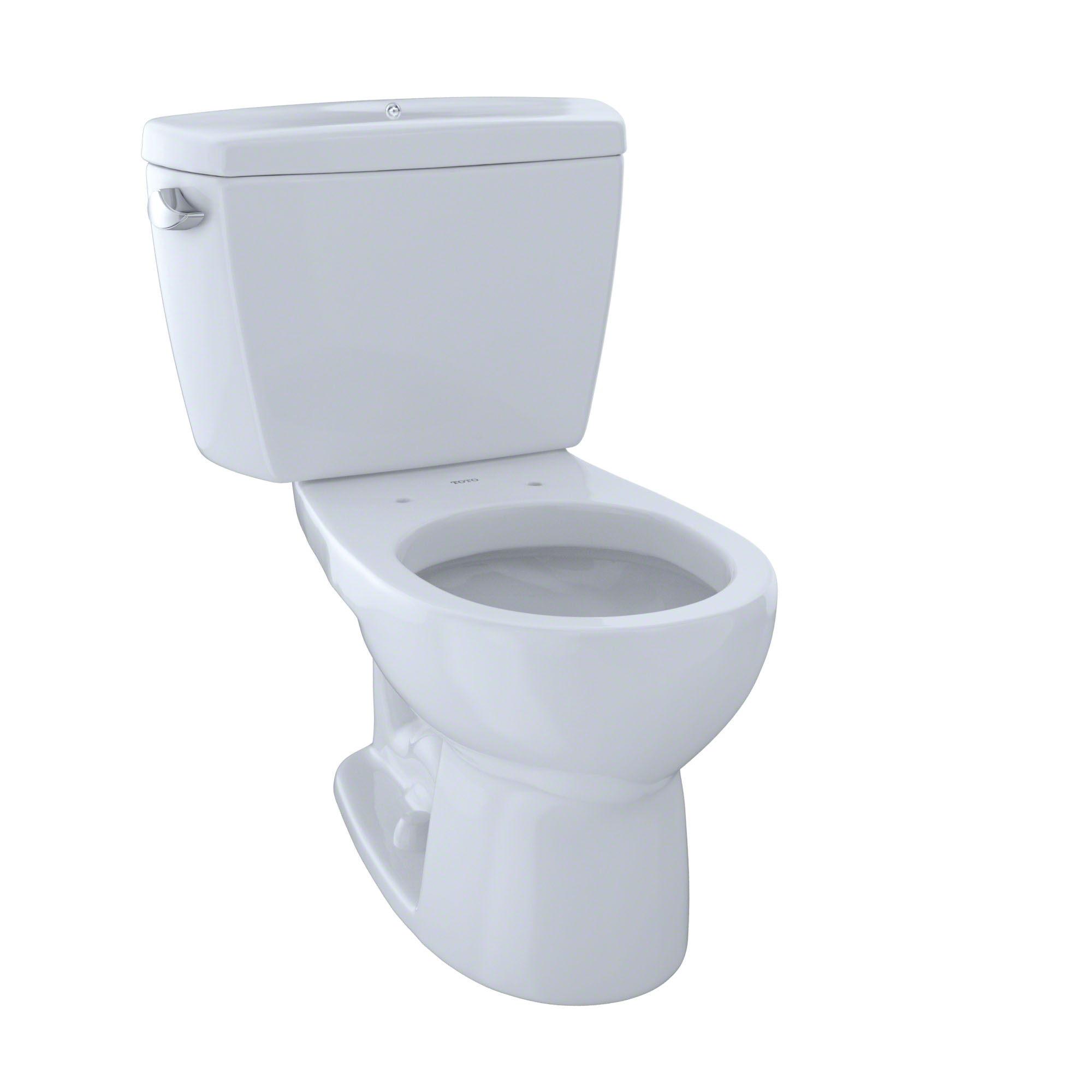

Toto® CST743SB#01 2-Piece Universal Height Close Coupled Toilet, Drake®, Round Bowl, 15-5/8 in H Rim, 12 in Rough-In, 1.6 gpf, Cotton White, Import

The Toto® Drake® Two-Piece Round 1.6 gpf Toilet with Bolt Down Tank Lid offers a high-profile design and is powerful and durable enough to work within both residential and commercial applications. The Drake® bowl and tank set includes a tank to bowl gasket, tank to bowl hardware, lid bolts, and toilet bolt caps. The Drake® utilizes Toto® ’s G-Max® flushing system which features a 3 in wide flush valve, extra-large siphon jet, and a large trapway. This reliable combination generates a powerful cleansing flush with 1.6 gal of water. This Drake® comes with a left-hand chrome trip lever and a bolt down tank lid to prohibit unwanted access to the tank. Additional items needed for installation and use must be purchased separately: wax ring, toilet mounting bolts, water supply lines, and toilet seat.

The Toto® Drake® Two-Piece Round 1.6 gpf Toilet with Bolt Down Tank Lid offers a high-profile design and is powerful and durable enough to work within both residential and commercial applications. The Drake® bowl and tank set includes a tank to bowl gasket, tank to bowl hardware, lid bolts, and toilet bolt caps. The Drake® utilizes Toto® ’s G-Max® flushing system which features a 3 in wide flush valve, extra-large siphon jet, and a large trapway. This reliable combination generates a powerful cleansing flush with 1.6 gal of water. This Drake® comes with a left-hand chrome trip lever and a bolt down tank lid to prohibit unwanted access to the tank. Additional items needed for installation and use must be purchased separately: wax ring, toilet mounting bolts, water supply lines, and toilet seat.

Bowl Dimensions      :      9-7/8 in
Bowl Shape      :      Round
Collection      :      Drake®
Domestic/Import      :      Import
Finish/Color      :      Cotton White
Flush Rate      :      1.6 gpf
Flush Valve Size      :      3 in
Flushing System      :      G-Max®
Material      :      Vitreous China
Mounting Type      :      Floor
Overall Dimensions      :      19-1/2 in W x 26-3/8 in D x 28-1/2 in H
Rim Height      :      15-5/8 in
Rough-In Size      :      12 in
Series      :      CST743SB
Trapway Size      :      2-1/8 in
Type      :      2-Piece
  • High-profile two-piece round bowl and tank set
  • G-Max® 1.6 GPF flushing system, creates a powerful flush
  • Left-hand chrome trip lever
  • Bolt down tank lid prohibits access to the tank
  • Glazed trapway
  • Without seat
    • pdfInstruction/Installation Manual https://hs-beta.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Toto_CST423SF_Manual.pdf
    • pdfLine Drawing https://hs-beta.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Toto_CST743S_Line_Drawing.pdf
    • pdfSpecification Sheet https://hs-beta.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Toto_CST743S_Specification_Sheet.pdf
