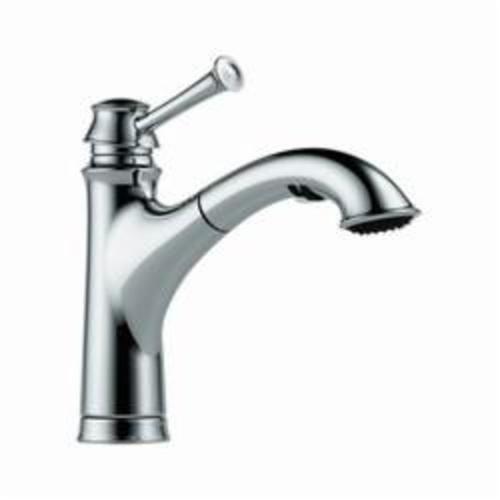

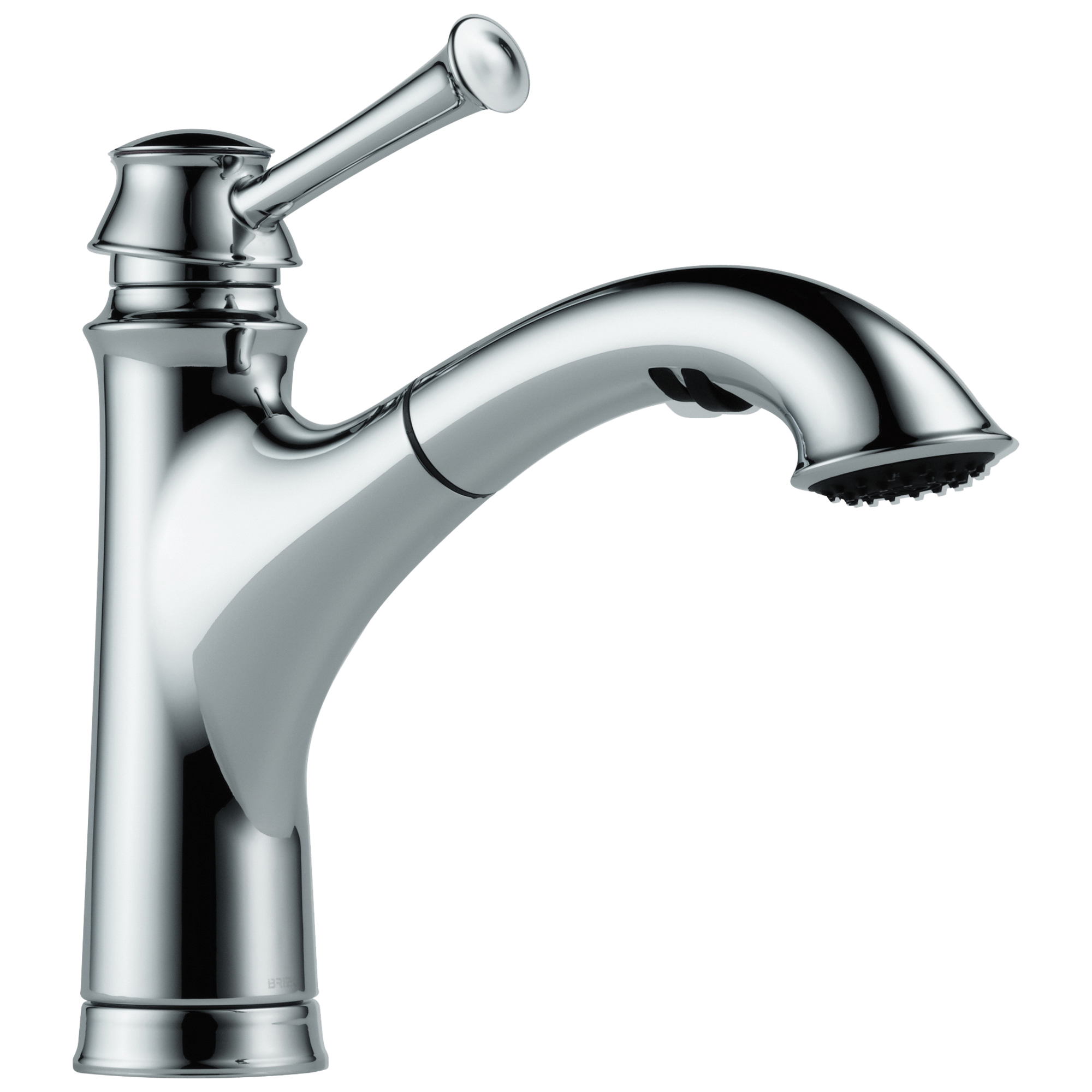

Brizo® 63005LF-PC

Brizo® 63005LF-PC Baliza® Kitchen Faucet, Commercial, 1.8 gpm Flow Rate, 120 deg Pull-Out Spout, Polished Chrome, 1 Handles, 1 Faucet Holes, Domestic

Drawing inspiration from the timeless beauty of lighthouses, the Baliza Bath Collection by Brizo® features a unique architecture and simple, elegant lines. The result is a stunningly fresh perspective on a warm, traditional feel.

Drawing inspiration from the timeless beauty of lighthouses, the Baliza Bath Collection by Brizo® features a unique architecture and simple, elegant lines. The result is a stunningly fresh perspective on a warm, traditional feel.

Center Distance      :      8 in
Collection      :      Baliza®
Commercial/Residential      :      Commercial
Connection Type      :      PEX
Domestic/Import      :      Domestic
Faucet Hole Size      :      1-1/16 in
Finish/Color      :      Polished Chrome
Flow Rate      :      1.8 gpm
Handle Type      :      Lever
Hose Size      :      59 in
Material      :      Solid Brass
Maximum Deck Thickness      :      2-1/2 in
Mounting Type      :      Deck
Number of Faucet Holes      :      1
Number of Handles      :      1
Spout Height      :      11-17/32 in
Spout Reach      :      9-9/16 in
Spout Type      :      Pull-Out
Valve/Cartridge Type      :      Euromotion Diamond™ Seal Valve
  • MagneDock® technology magnetic docking system
  • Diamondâ„¢ Seal® Technology
  • Euromotion Diamondâ„¢ Valve valve with InnoFlex® waterways
  • Touch-Clean® nozzles - swipe away mineral deposits
  • Two-button, four-function wand: spray, stream, volume control and pause
  • 1-hole installation
  • Comes with standard fittings
  • 1, 2, 3, or 4 hole mount
  • Spout is connected to valve body with a 59 in (1524 mm) long hose that extends to 38 in (965 mm) usable length
  • Pull-out spray operates in an aerated or spray mode, with volume control and pause, via easy push toggle buttons
  • Control mechanism - 32 mm ceramic disc cartridge with metal stem
  • Red blue graphics under handle button indicate hot cold temperature
  • 3/8 in OD straight, staggered PEX supply tubes
  • Integral double check valves in spout
  • Mounts in standard 1-3/8 in Dia holes
  • 1.8 gpm at 60 psi
    • pdfInstruction/Installation Manual https://hs-beta.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Delta_Faucet_Co_63005LF-PC_Manual.pdf
    • pdfLine Drawing https://hs-beta.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Delta_Faucet_Co_63005LF-PC_Line_Drawing.pdf
    • pdfSpecification Sheet https://hs-beta.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Delta_Faucet_Co_63005LF-PC_Specification_Sheet.pdf
