Febco® 1114

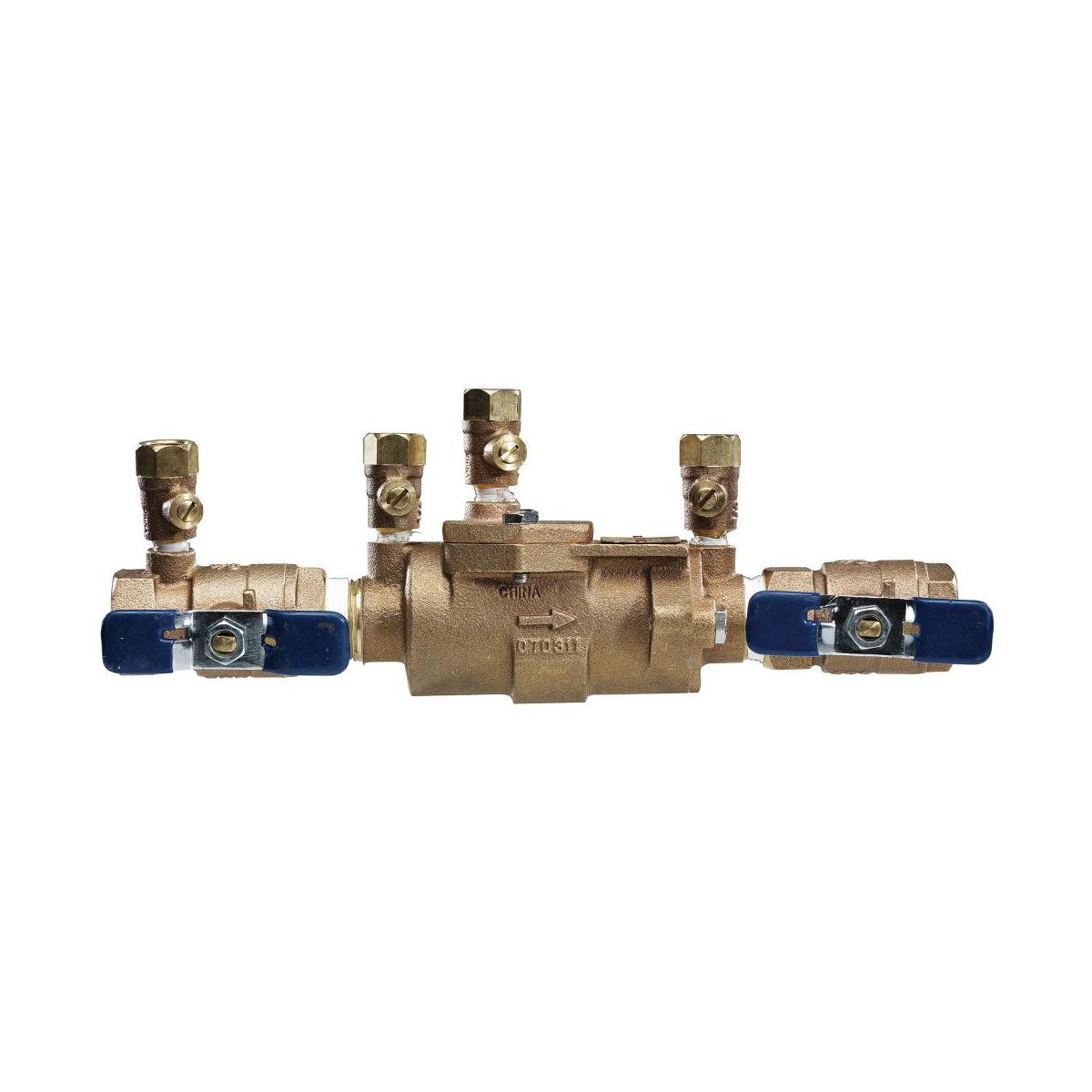

Febco® 1114 850 In-Line Small Diameter Double Check Valve Assembly, 1-1/4 in Nominal, NPT End Style, Quarter-Turn Ball Valve, Bronze Body, Import

This 1-1/4 in small diameter double check valve assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly consists of a bronze body construction, NPT end connections, quarter turn ball valve shutoffs, top mounted test cocks, two in-line independent positive seating check modules, captured springs and replaceable check discs and seats.

This 1-1/4 in small diameter double check valve assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly consists of a bronze body construction, NPT end connections, quarter turn ball valve shutoffs, top mounted test cocks, two in-line independent positive seating check modules, captured springs and replaceable check discs and seats.

Ball Valve/Gate Valve type      :      Quarter-Turn Ball Valve
Body Material      :      Bronze
Dimensions      :      15-7/8 in L
Domestic/Import      :      Import
End Style      :      NPT
Nominal Size      :      1-1/4 in
Pressure Rating      :      175 psi
Series      :      850
Temperature Rating      :      32 to 140 deg F
Type      :      In-Line Small Diameter
  • Bronze body for durability
  • Modular compact design
  • Top entry
  • 350 psi hydrostatic test pressure
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
  • Replaceable seats and seat discs
    • pdfCatalog https://hs-beta.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Watts_1115_Catalog.pdf
    • pdfInstruction/Installation Manual https://hs-beta.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Watts_1115_Manual.pdf
    • pdfSpecification Sheet https://hs-beta.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Watts_1115_Specification_Sheet.pdf
