Apollo™ 77CLF14701A

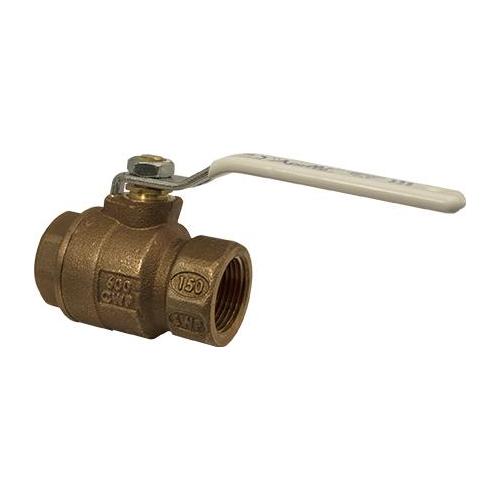

Apollo™ 77CLF14701A 77CLF-A 2-Piece Ball Valve, 1-1/2 in Nominal, FNPT End Style, Bronze Body, Full Port, RPTFE Softgoods, Domestic

The Apollo™ 77CLF Contractor Series Lead Free Ball Valve features a dezincification resistant bronze body, premium RPTFE seats and stem packing and a Solid Ball design that delivers true full-port flow performance. Cast and machined in Apollo™'s South Carolina manufacturing plants using proven EZ-Solder™ Lead Free materials.

The Apollo™ 77CLF Contractor Series Lead Free Ball Valve features a dezincification resistant bronze body, premium RPTFE seats and stem packing and a Solid Ball design that delivers true full-port flow performance. Cast and machined in Apollo™'s South Carolina manufacturing plants using proven EZ-Solder™ Lead Free materials.

Actuator Type      :      Lever Operated
Ball Material      :      Chrome Plated Brass
Body Material      :      Bronze
Domestic/Import      :      Domestic
End Style      :      FNPT
Inlet to Outlet Length      :      4.11 in
Media      :      Water
Nominal Size      :      1-1/2 in
Port Type      :      Full
Pressure Rating      :      600 psi CWP
Series      :      77CLF-A
Softgoods Material      :      RPTFE
Temperature Rating      :      450 deg F
Top to Inlet Center      :      2.9 in
Trim Material      :      316 Stainless Steel Stem Stem and RPTFE Seat
Type      :      2-Piece
  • Easily identifiable white handle grip and blue Lead free hang tag
  • EZ-Solder Lead free bronze body
  • Blow-out proof stem
  • Vacuum service to 29 in Hg
  • Zinc plated steel nut
  • Zinc plated steel/vinyl standard handle
  • Standard trim
  • 150 psi steam working pressure
    • pdfCatalog https://hs-beta.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Apollo_77V-104-01_Catalog.pdf
    • pdfInstruction/Installation Manual https://hs-beta.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Apollo_77CLF-101-01A_Manual.pdf
    • pdfLine Drawing https://hs-beta.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Apollo_77CLF-101-01A_Line_Drawing.pdf
    • pdfSpecification Sheet https://hs-beta.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Apollo_77CLF-101-01A_Specification_Sheet.pdf
    • linkVideo Link https://youtu.be/qy5qmtgTtPQ
