Sharkbite® SB114140M

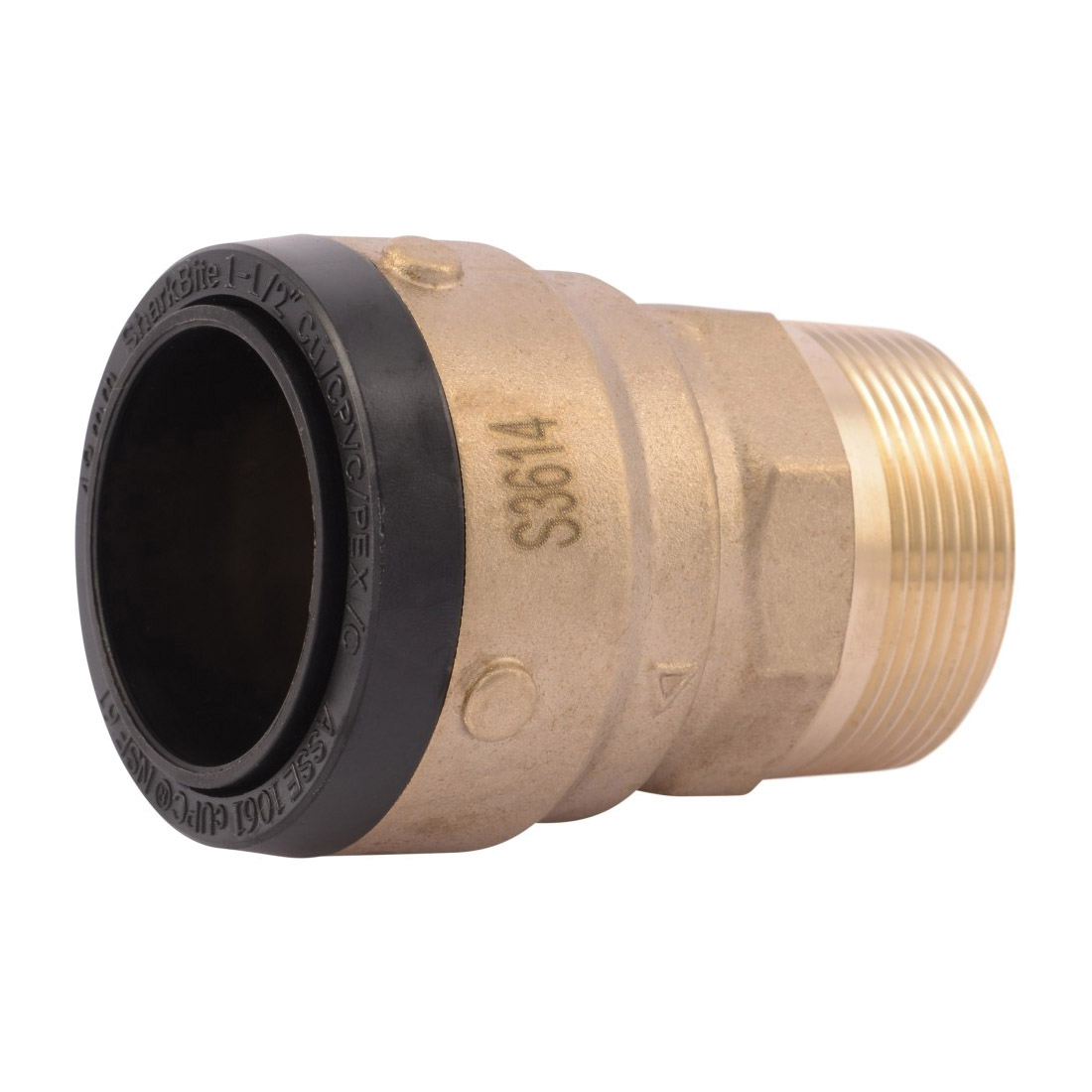

Sharkbite® SB114140M 2XL Large Diameter Male Connector, 1-1/2 in Nominal, Push-Fit x MNPT End Style, Brass, Import

SharkBite Large Diameter Male Connectors combine innovative push-to-connect design with a standard MNPT adapter on the opposite end. The push-fit end is compatible with Copper, PEX, CPVC or PE-RT pipes and can be installed with no solder, glue, unions or tools required. This fitting is designed for potable water and radiant heating (including underground or behind-the-wall) applications with no access panels required. It is rated up to 200 deg F and 200 psi. Large Diameter PEX Stiffeners are required when connecting to PEX tubing.

SharkBite® Large Diameter Male Connectors combine innovative push-to-connect design with a standard MNPT adapter on the opposite end. The push-fit end is compatible with Copper, PEX, CPVC or PE-RT pipes and can be installed with no solder, glue, unions or tools required. This fitting is designed for potable water and radiant heating (including underground or behind-the-wall) applications with no access panels required. It is rated up to 200 deg F and 200 psi. Large Diameter PEX Stiffeners are required when connecting to PEX tubing.

Domestic/Import      :      Import
End Style      :      Push-Fit x MNPT
Fitting/Connector Type      :      Connector
Length      :      3.2 in
Material      :      Brass
Nominal Size      :      1-1/2 in
Pressure Rating      :      200 psi
Series      :      2XL
Temperature Rating      :      20 to 200 deg F
Type      :      Large Diameter
  • Quick connect - No tools, soldering, clamps, unions or glue required, cut pipe square, de-burr to remove rough edges/debris, mark the pipe for correct depth and push to get a pressure ready connection every time
  • Quick disconnect - Disconnect in seconds by sliding the de-mount tool down the pipe to engage the demount lugs and rotate clockwise to lock the open position leaving both hands free, you can now remove the pipe
  • SAFE-recessed release collar - Commercial SharkBite® require a special demount tool and cannot be accidentally disconnected/released
  • Extensive range including slip feature on couplings and tee's - When repairing or tapping into existing pipe with push-fittings you must be able to either move the fitting or the pipe to ensures the pipe is engaged fully into the fitting, with rigid pipe like copper the only way with push-fittings is to have a slip feature to allow easy installation when tapping into existing pipe
  • Easy installation unlike the tool intensive connection methods there is no need to send multiple fitters to a job, SharkBite® commercial has been designed to be installed or removed by one person
  • All fittings are lubricated for easy connection and by fitting the de-mount tool before engaging the pipe the force required can be reduced further
  • Wet or dry - No waiting for copper tube to dry before soldering or glue to cure, SharkBite® makes an instant connection in seconds
  • No tools - Unlike alterative tool intensive connections systems, SharkBite® has no special tooling required for installation
  • No time - Fastest connection - cut-push-done, easy access to small or confined places, no flame - does not require fire permit or fire marshal
  • No waste - Should you make an error or simply want to change your installation, no problem for SharkBite®, simply remove and re-use, (fitting used for repeated testing must not be used in any permanent application)
  • Fittings cannot be disassembled - SharkBite® commercial fitt for i
