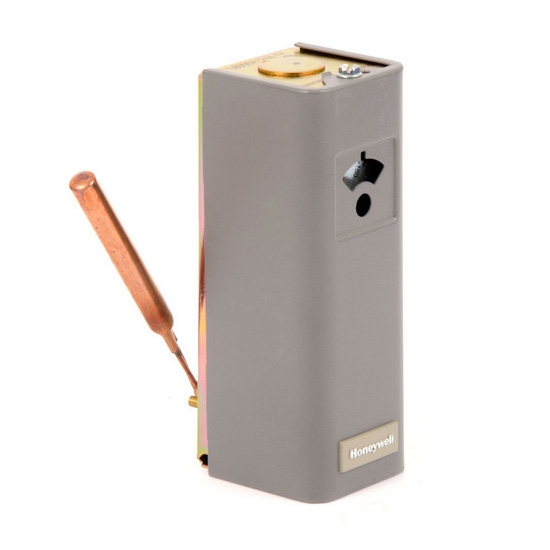

Aquastat® Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks and other applications where temperature control is required.

• Horizontal Mount Aquastat
• 100-240°F range
• 5-30°F Adj Differential
• Totally enclosed Micro Switch, snap-acting switches operate on temperature rise to set point.
• Visible control point scale and external adjustment screw permit easy setting.
• Horizontal or vertical insertion of the sensing element.
• Direct, well immersion, or surface mounting of the sensing element available.
• Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications.
• Direct or well immersion Tradeline models include heat-conductive compound.
• Select models have wells.
• For high or low limit temperature control of boiler water or liquid in tanks.
• Tube of heat-conductive compound (see HC Tube column) included with some models.

• Totally enclosed Micro switch™ snap-acting switches operate on temperature rise to set point
• Visible control point scale and external adjustments screw permit easy setting
• Horizontal or vertical insertion of the sensing element
• Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications
• Direct or well immersion TRADELINE® models include heat-conductive compound
• 5.1 to 8 A at 120 to 240 VAC for full load
• 30.6 to 48 A at 120 to 240 VAC for locked rotor
