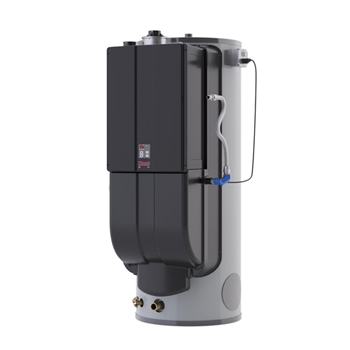

CHS199100HiN Rinnai H-Series Demand Duo Hybrid Commercial Natural Gas Water Heating System

• Part Number : CHS199100HiN
• Dimensions (Assembled) in. (mm) : w x h x d: 38.81 x 69.60 x 40.96 (985.8 x 1,767.8 x 1,040.4)
• Installation Type : Indoor
• Storage Tank : 119 Gallons (450 Liters)
• BTU : 199,000
• Water Supply Pressure : 150 PSI (Maximum)
• Temperature Setting : 98°F (37°C) to 185°F (85°C)
• Water Flow Control : Water Flow Sensor, Electronic Water Control and Bypass Control
• Water Temperature Control : Simulation Feed Forward and Feedback
• Recovery : 459 GPH @ 100° ∆T
• High Altitude Approved : Up to 10,200 ft (3,109 m)
• Ultra Low NOx : Yes
• Certifications : AHRI, ANSI Z21.10.3, CSA 4.3 and ENERGY STAR® Certified (CU199i)
• Recovery Pump : Grundfos UPS 26-150 (S)F; 3 Speed
• Venting Material : Polypropylene, PVC, CPVC
• Venting Options : Concentric Polypropylene, Twin Pipe, or Common Vent Polypropylene/ PVC/CPVC. Vent lengths up to 150 ft.
• Wi-Fi Ready : Yes
