Unit shall include electric water cooler with bottle filling station. LVRC8WS shall deliver 8 gph of 50 deg F drinking water at 90 deg F ambient and 80 deg F inlet water.LVRCDWS shall deliver non-chilled drinking water. Units shall be stainless steel construction and include vandal-resistant pushbutton activation. Cooler shall include vandal-resistant bubbler. Bottle filling unit shall include an automatic 20 sec shut-off timer. Shall include Green Ticker™ displaying count ofplastic bottles saved from waste. Bottle filler shall provide 1.1 to 1.5 gpm flow rate with laminar flow to minimize splashing. Shall include the WaterSentry® Plus 3000 gal capacity filter, certified to NSF/ANSI 42 and 53, with visual monitor to indicate when replacement is necessary. Unit shall meet ADA guidelines. Unit shall be lead free design which is certified to NSF/ANSI 61 and 372 and meets federal and state low-lead requirements. Unit shall be certified to UL399 and CAN/CSA 22.2 No. 120.

Elkay® Bottle Filling Station and Cooler, Lead Free Filtered, 1.1 gpm, Operation: Push Button, Chilling Option: Refrigerated, 1-1/4 in Drain, Wall Mount, 115 VAC 60 Hz 370 W, R-134A Refrigerant, Galvanized Steel, Stainless Steel, 18-5/8 in D, Domestic

• Ideal for heavy-use installations such as educational and indoor recreational facilities.
• Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
• Vandal-resistant, push-button activation for both the bottle filler and the water cooler.
• Fill rate is 1.1 GPM.
• Visual filter monitor with LED filter status indicator for when filter change is necessary.
• The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
• Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste.
• Laminar flow provides clean fill with minimal splash.

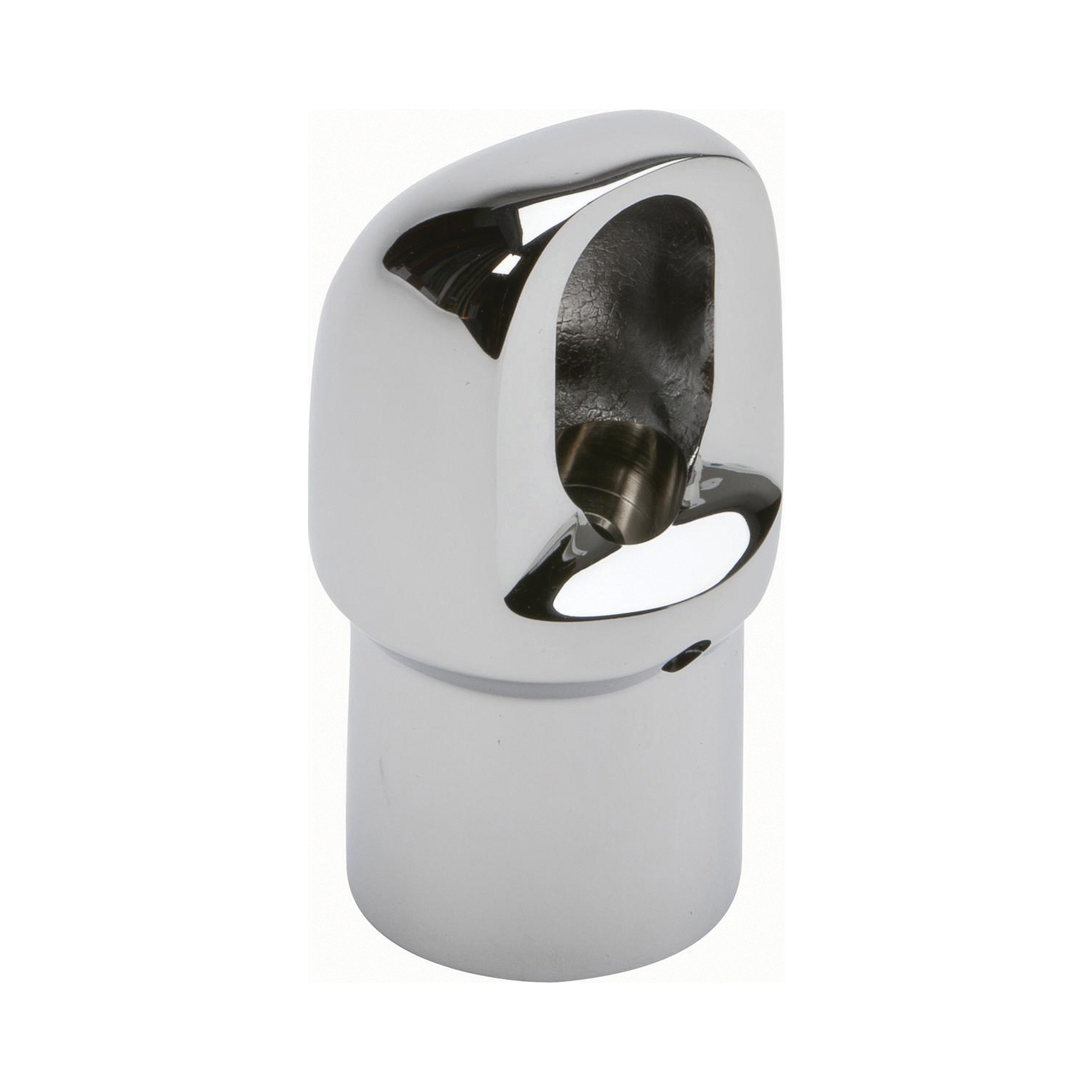

• Vandal-resistant bubblers feature chrome-plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
• Rated for indoor use.
