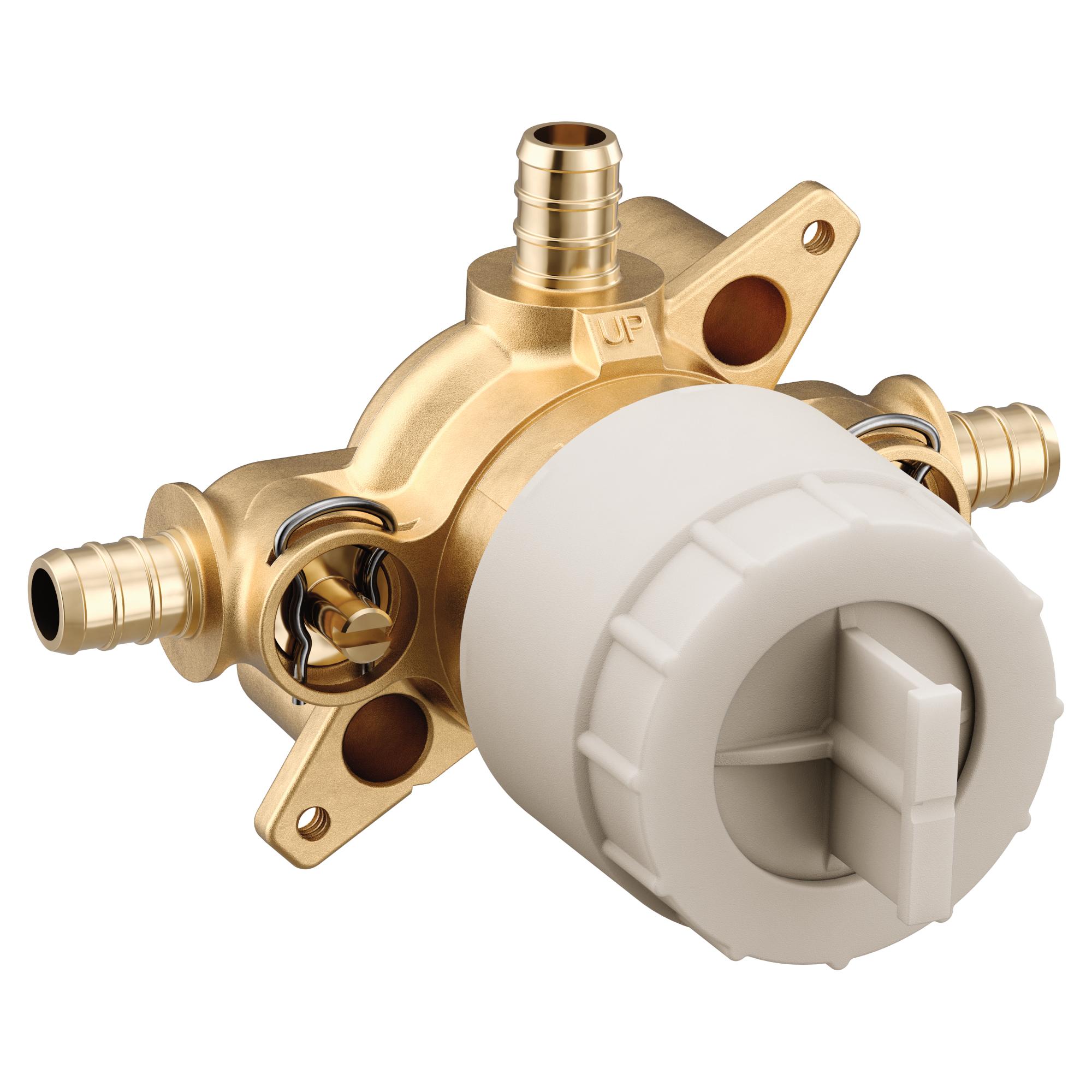

Moen® M-Pact™ M-Core™ U130XS 3-Port Rough-In Valve, 1/2 in PEX Inlet x 1/2 in PEX Outlet, 200 psi Air/300 psi Water Pressure, Brass Body, Domestic

    • Inventory at your Home Branch is Login for Availability
  • HPS Quick Code: 78742
  • MPN: U130XS
  • UPC: 026508319444
  • Manufacturer: Moen
  • Brand Name: Moen®
    • Min. Order Qty: 1
    • Sold in Multiples of 1
  • Sold As: Pack of 1

M-CORE™ is shower design on your time. This valve system is simpler and faster to install, and offers additional functionality with desired style choices to create an ideal shower environment. Moen has conducted extensive research to create M-CORE, and what drives the design is a passion to make the workday more streamlined for plumbers, and to give more freedom in showering functionality and design for both new construction and remodel projects. Homeowners and designers will enjoy M-CORE's improved style and finish options, including perfectly matching mixing and transfer trim, and refined details that provide the finishing touches to a dream bathroom. Once installed, M-CORE valves, with new 3-Series trim, have pressure-balancing capabilities designed to control temperature fluctuations in the event of water pressure changes in the home. They also feature volume control, allowing you to adjust the flow of water.

Domestic/Import      :      Domestic
Outlet Connection      :      1/2 in PEX
Type      :      3-Port
  • Built on the Moen® M-Pactâ„¢ common valve system, allowing you to update the faucet style in the future without replacing any plumbing
  • M-CORE valves, with 3-Series trim, have pressure-balancing capabilities designed to control temperature fluctuations in the event of water pressure changes in the home
  • Feature volume control, allowing you to adjust the flow of water for greater functionality
  • M-CORE 3-Series offers a full line of finish, style and platform options for every shower configuration
  • Offers design flexibility to choose your trim after the valve installation, so you can take your time with your style and finish selections
  • M-CORES adaptability allows the valves to be roughed-in with the option of functionality and style changes that dont require removing or changing the valve(s)
  • Features an integrated mounting bracket that secures the valve directly to a brace, streamlining the installation process and saving time
  • M-CORE mixing and transfer valves are available in several inlet and outlet plumbing options to meet the needs of the installers
