Moen® U231X

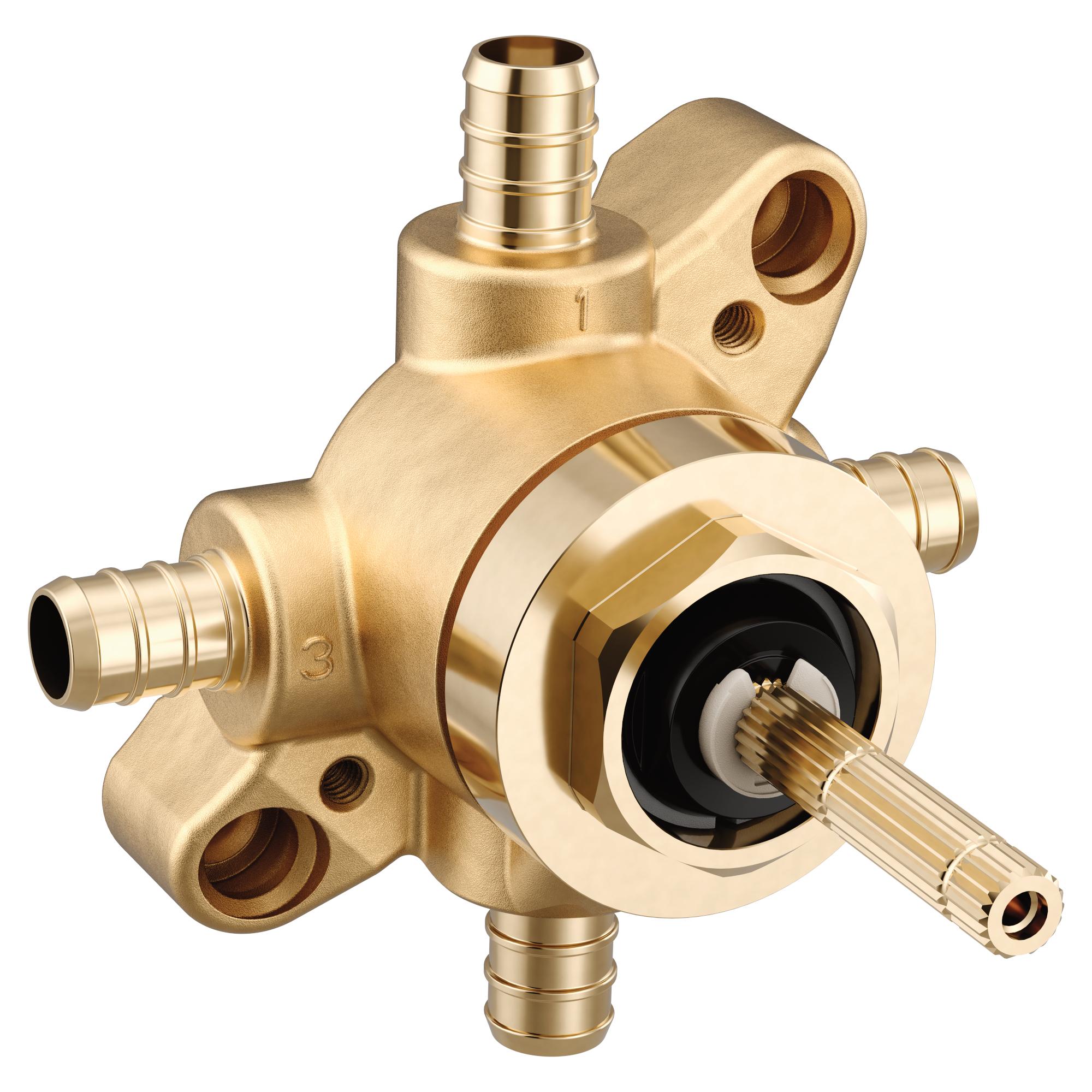

Moen® M-Pact™ M-Core™ U231X 3-Port 2/3 Independent Function Transfer Valve, 1/2 in PEX Inlet x 1/2 in PEX Outlet, Brass Body, Domestic

    • Inventory at your Home Branch is Login for Availability
  • HPS Quick Code: 78743
  • MPN: U231X
  • UPC: 026508319598
  • Manufacturer: Moen
  • Brand Name: Moen®
    • Min. Order Qty: 1
    • Sold in Multiples of 1
  • Sold As: Pack of 1

M-CORE™ is shower design on your time. This valve system is simpler and faster to install, and offers additional functionality with desired style choices to create an ideal shower environment. Moen has conducted extensive research to create M-CORE, and what drives the design is a passion to make the workday more streamlined for plumbers and to give more freedom in showering functionality and design whether in new construction or remodel projects. Homeowners and designers will enjoy M-CORE's improved style and finish options including perfectly matching mixing and transfer trim, and attention to detail that reflects a desire for a dream bathroom.

Inlet Connection      :      1/2 in PEX
Mounting Type      :      Wall
Outlet Connection      :      1/2 in PEX
  • Built on the Moen® M-Pactâ„¢ common valve system, allowing you to update the faucet style in the future without replacing any plumbing
  • Detents at each flow position
  • The valve is factory set for 2 showering devices but can be adjusted to accommodate 3 showering devices
  • Simple cartridge modification changes the valves flow from two outlets to three outlets
  • See Transfer Valve Instructions for additional information
  • IMPORTANT - When using 2 Showering Devices, designated outlet 3 must be CAPPED. Caps
  • M-CORE Transfer Valves have a simplified trim offering, and suite matching handles with integrated and mixing valves
  • Offers design flexibility to choose your trim after the valve installation, so you can take your time with your style and finish selections
  • M-CORES adaptability allows the valves to be roughed in with the option of functionality and style changes that dont require removing or changing the valve
  • Features an integrated mounting bracket that secures the valve directly to a brace, streamlining the installation process and saving time
  • M-CORE mixing and transfer valves are available in several inlet and outlet plumbing options to meet the needs of the installers
